Click on links below to learn more about each items attribute

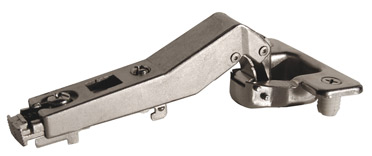

Opening Degree: 110°
Mount to Door: DOWEL, can be removed
OVERLAY: Almost no overlay.
Hole Pattern: Blum
Mount to Hinge/Plate: Clip On
Height: Adjustable On Plate *
Side Adjust: Cam Screw
Application: Used on the 45 degree corner door. Because of the design of this hinge there in almost no overlay on the inside corner edge of the door. Measure your door for normal overlay you want on the other side.
NOTE: MFH and DTC are the same. At one time MFH was stamped on them and now DTC is stamped.
* Must use MFH Plate SOLD SEPERATELY. See 3 choices on right of this page. The plates will NOT give overlays shown with this hinge.
